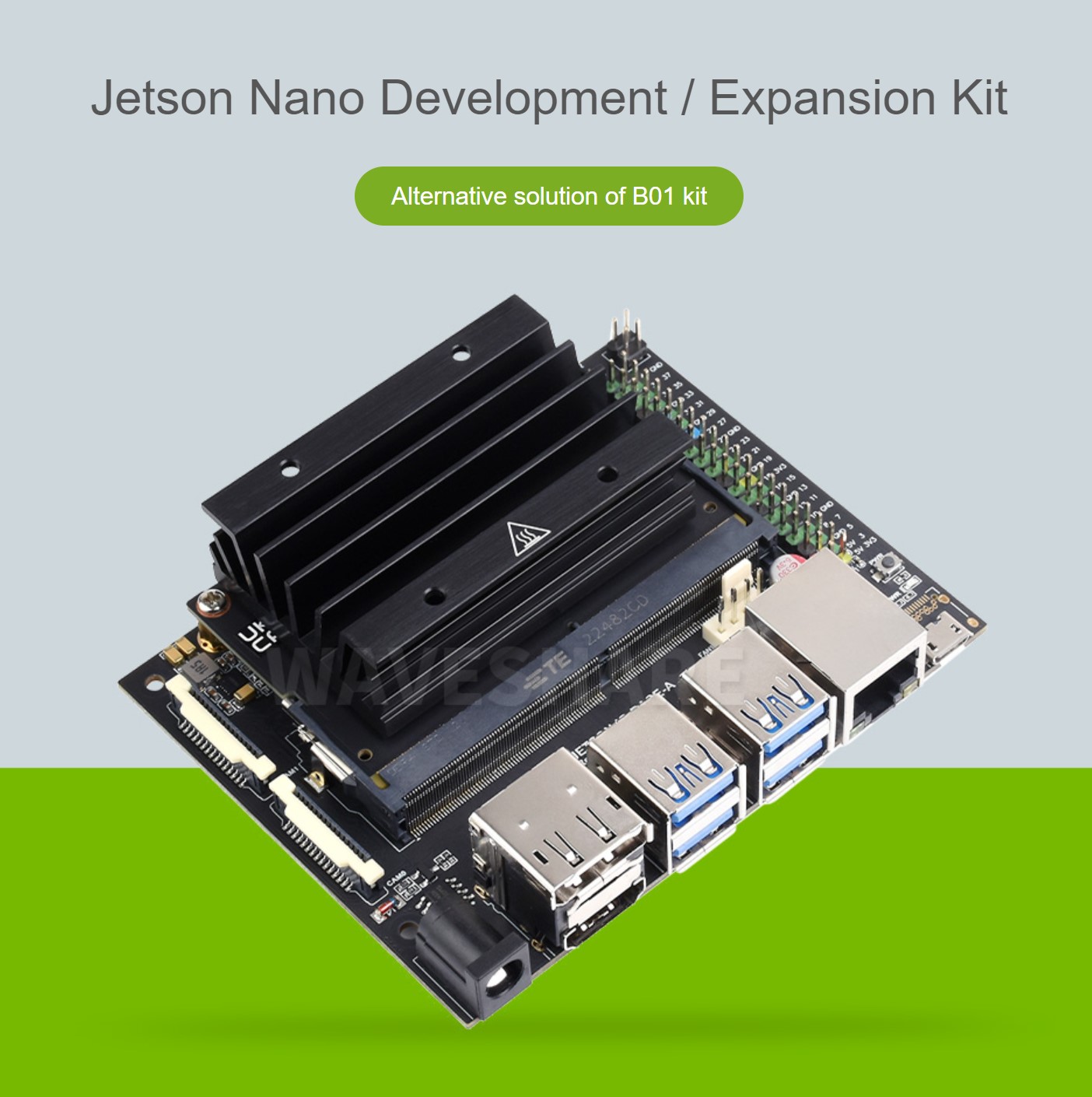

Jetson Nano Dev Kit - G

Based on AI computers Jetson Nano, providing almost the same peripheral interfaces, size and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module. By utilizing the power of core module, it is qualified for fields like image classification, object detection, segmentation, speech processing etc. and can be used in sorts of AI projects.



Default Storage:

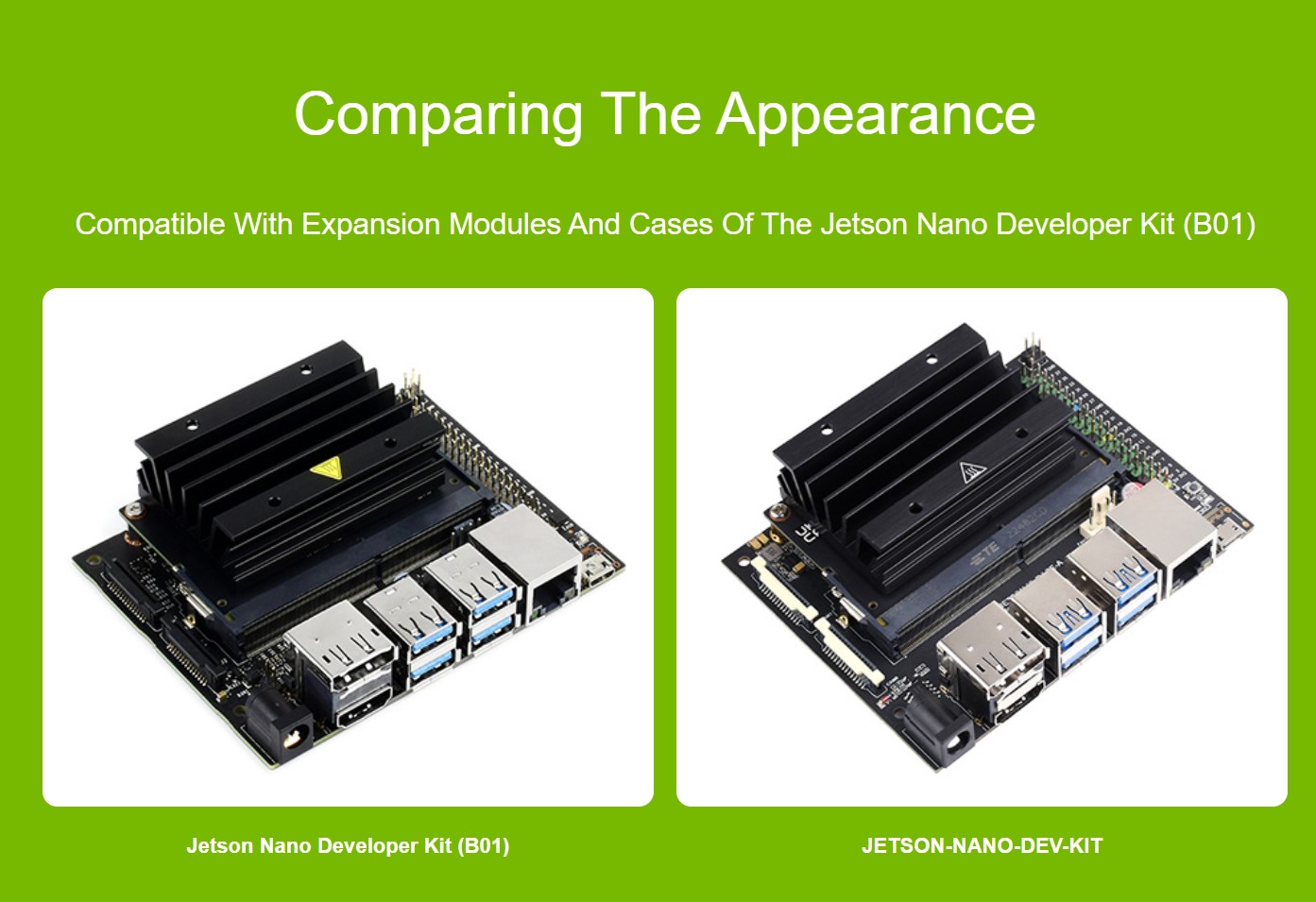

Jetson Nano Developer Kit (B01)

The Nano module included in the B01 kit has no storage onboard, external TF card is required to be used as the system startup disk

JETSON-NANO-DEV-KIT

Includes a Nano module with onboard 16GB eMMC, more stable reading/writing, no extra TF card required for startup disk, providing adequate space for installing system image and development/study requirement in most cases

External Storage Option:

Jetson Nano Developer Kit (B01)

The B01 kit requires an external TF card to be used as the system startup disk

JETSON-NANO-DEV-KIT

Comes with a 64GB TF card, no need to purchase separately, competent for complicate development projects

External TF Card Slot:


Jetson Nano Developer Kit (B01) There is no external TF card slot on the expansion board, it needs to be equipped with a Nano module with a TF card interface	JETSON-NANO-DEV-KIT Support TF card. To use this function, you need to modify the device tree file, which is difficult for users who are just getting started. Can be used as memory expansion or startup disk

Comparing The Specifications:

	Jetson Nano Developer Kit (B01)	JETSON-NANO-DEV-KIT
GPU	128-core Maxwell
CPU	Quad-core ARM A57 @ 1.43 GHz
Memory	4 GB 64-bit LPDDR4 25.6 GB/s
Storage	TF card (NOT included)	16GB eMMC + 64GB TF card
Video Encoder	250 MP/s 1x 4K @ 30 [HEVC] 2x 1080p @ 60 [HEVC] 4x 1080p @ 30 [HEVC]
Video Decoder	500 MP/s 1x 4K @ 60 [HEVC] 2x 4K @ 30 [HEVC] 4x 1080p @ 60 [HEVC] 8x 1080p @ 30 [HEVC]
Camera	2x MIPI CSI-2 DPHY lanes
Connectivity	Gigabit Ethernet, M.2 Key E expansion connector
Display	HDMI and DP
USB	4x USB 3.0, USB 2.0 Micro-B
Extension Interfaces	GPIO, I2C, I2S, SPI, UART
Dimensions	100 × 80 × 29mm
Other	260-pin connector

Play Around With Binocular Vision:

Supports 2-lanes CSI Camera, suitable for binocular vision applications such as parallax algorithm ranging, facial recognition, organism detection, VR video recording


Dual 4K Outputs

supports DisplayPort and HDMI high definition ports


4x high speed USB3.0

USB3.0 high speed data transmission, allows more USB peripherals


Color-Coded 40PIN GPIO Header

color-coded header pins with clear labels, handy for use


Introduction

Core module socket
TF card slot
M.2 Key E connector

1.25mm Fan header

PoE pins: PoE module is not included
40PIN GPIO header
2.54mm Fan header
Micro USB port: for 5V power input or for USB data transmission
Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected
4x USB 3.0 port
HDMI output port
DisplayPort connector

DC jack: for 5V power input
2x MIPI CSI camera connector

Multi-function 12PIN header
PWR button: Power ON/OFF control (same function as the PWR BTN pin)


Similar Products:

Products That Can Be Used Together:

Useful Links / Documents:

Jetson Nano Wiki
NVIDIA Jetson Nano Developer Kit User Guide
